Gastite CSST is changing to Flashshield - Are you certified?

N&N Supply is now stocking FlashShield tubing and fittings.

flashshield csst

FlashShield™ is metallically shielded flexible gas piping system complying with ANSI LC 1 "Fuel Gas Piping Systems Using CSST" and listed with CSA® , ICC and IAPMO. The FlashShield system is also listed to protective jacket standards, ICC-ES PMG LC1024, and LC1027. Manufacturing materials are: ASTM A240 type 300 corrugated stainless steel tubing with a minimum wall thickness of .010", a metallically shielded layer between two layers of semi-conductive jacketing of UV resistant polymer meeting the requirements of ASTM E 84 for flame spread and smoke density. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing and shield-to-fitting electrical conductivity, and Jacket-LockTM design feature.


flashsheild_tubing

FlashShield CSST Features:

• Metallic shield layer provides protection from electrical damage
• Two layers semi-conductive polymer jacket
• Pre-Marked by the Foot
• Lightweight & Flexible
• 100% Factory Pressure Tested

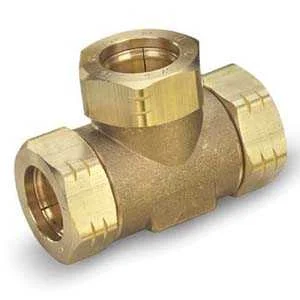

Tee Fittings create a branch line on tubing runs.

Tee Fittings create a branch line on tubing runs.

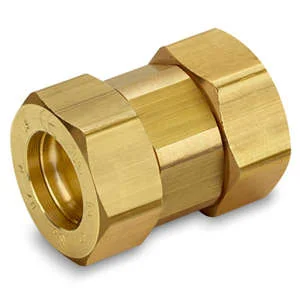

Couplings allow for the splicing and additions to the flexible gas piping.

Couplings allow for the splicing and additions to the flexible gas piping.


Straight Fittings connect the flexible gas piping to gas supply, distribution manifolds or gas appliances.

Straight Fittings connect the flexible gas piping to gas supply, distribution manifolds or gas appliances.

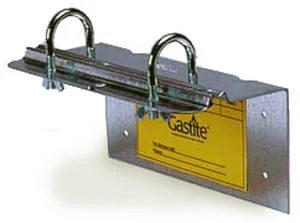

Manifold Bracket provides mounting platform for manifolds, supplied with adhesive port labeling.

Manifold Bracket provides mounting platform for manifolds, supplied with adhesive port labeling.

XROUTLETBOX creates a secure recessed termination point for connection to movable appliances.

XROUTLETBOX creates a secure recessed termination point for connection to movable appliances.

Termination Flange fittings creates a fixed point "stub-out" on a wall or floor surface.

Termination Flange fittings creates a fixed point "stub-out" on a wall or floor surface.

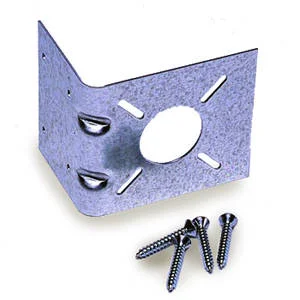

Termination Bracket provides mounting surface for termination fitting assembly.

Termination Bracket provides mounting surface for termination fitting assembly.

All Stubs create a fixed point “stub-out” on a wall or floor surface for meter and appliance attachment. Angle Stub-Out mounting plate provided at a 72-1/2° angle to facilitate mounting to angled side of most fireplace inserts.

All Stubs create a fixed point “stub-out” on a wall or floor surface for meter and appliance attachment.

Angle Stub-Out mounting plate provided at a 72-1/2° angle to facilitate mounting to angled side of most fireplace inserts.

Manifolds provide central distribution point for individual runs to each appliance.

Manifolds provide central distribution point for individual runs to each appliance.


Maxitrol Regulators: Designed for multi-poise mounting  • Self-aligning valve with lever action for dead end lockup  • Durable, corrosion-resistant construction  • High performance type for pounds to inches reduction  • Available in 3/8" to 11/" pipe sizes  • Precise regulation from pilot flows to full regulator capacity  • CSA certified for up to 5-psi inlet pressure  • Over-pressure protection device (OPD) to limit downstream pressure in case of regulator failure  • Self-aligning valve with lever action for dead end regulator lockup

Maxitrol Regulators:

Designed for multi-poise mounting
• Self-aligning valve with lever action for dead end lockup
• Durable, corrosion-resistant construction
• High performance type for pounds to inches reduction
• Available in 3/8" to 11/" pipe sizes
• Precise regulation from pilot flows to full regulator capacity
• CSA certified for up to 5-psi inlet pressure
• Over-pressure protection device (OPD) to limit downstream pressure in case of regulator failure
• Self-aligning valve with lever action for dead end regulator lockup

Striker plates used for protection where flexible gas piping passes through structural members and is restricted from moving to avoid nails, screws and other potential puncture threats.

Striker plates used for protection where flexible gas piping passes through structural members and is restricted from moving to avoid nails, screws and other potential puncture threats.


Jacket Stripper for cutting and removal of CSST / Flashshield  jacket allowing for a clean and proper fitting assembly.

Jacket Stripper for cutting and removal of CSST / Flashshield  jacket allowing for a clean and proper fitting assembly.
